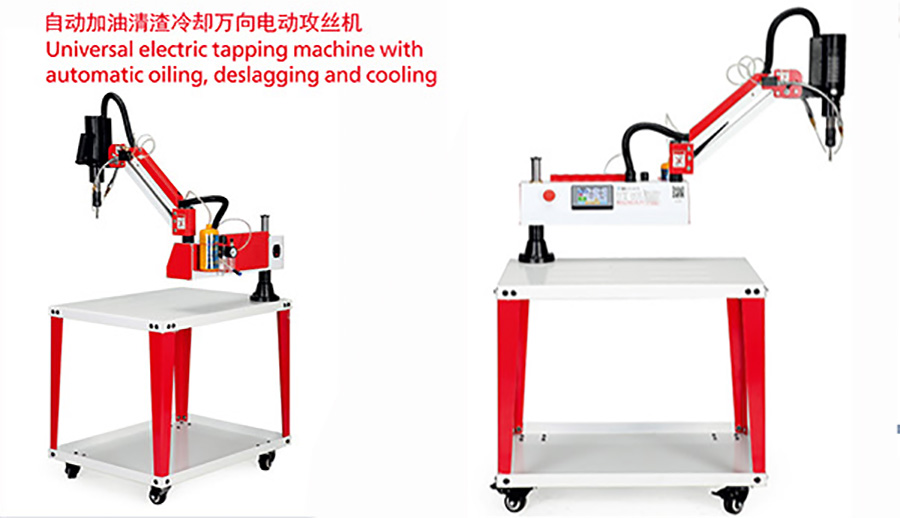

Patented products: Electric tapping machine with automatical oil spray, chip blowing and cooling system.
M2-M6 tapping machine, M2-M6 tapping machine. arm tapping machine.
M2-M8 electric tapping machine, M2-M8 electric tapping machine.
M2-M10 servo tapping machine, M2-M10 servo tapping machine.
arm tapping machine, with 600W servo motor, 1200mm working radius.
Product parameter:
| Item No.: |
Tapping material |
Spindle speed |
Working radius |
Power |
Operation interface |
| Iron |
Aluminum |
Steel |
| D0612 |
M2-M6 |
M2-M6 |
M2-M5 |
0-1500RPM |
1200mm |
600W |
HD touch screen |
| D0612P |
| D0812 |
M2-M8 |
M2-M8 |
M2-M6 |
0-800RPM |
1200mm |
600W |
| D0812P |
| D1012 |
M2-M10 |
M2-M10 |
M2-M10 |
0-500RPM |
1200mm |
600W |
| D1012P |
Performance:
1) High tapping efficiency, don't need manually adding tapping oil and blowing chips.
2) Improve tap life. Add oil during tapping and blow chips during wire removal to ensure that the tapping is lubricated and clean. Cool down during wire removal to prevent the tap from overheating, which can increase the tap life by more than 30% -50%.
3) Improve tapping precision, without tooth broken. Automaticall add oil when tapping for good lubrication effect, automatically blow chips and cooling when tap return, keep the tap clean and free of debris.
4) Spray oil and blow chips while tapping, making tapping smoother and preventing the tap from breaking easily。
5）Save tapping oil. The oil spraying system only sprays oil little by little onto the tap, keeping it lubricated at all times, unlike manually pouring too much oil.
6) Reduce labor intensity and improve work efficiency. The operator only needs to swing the machine head, align it with the hole position for tapping, without the need to tap once, pour oil once, or blow debris with an air gun like the old model.
